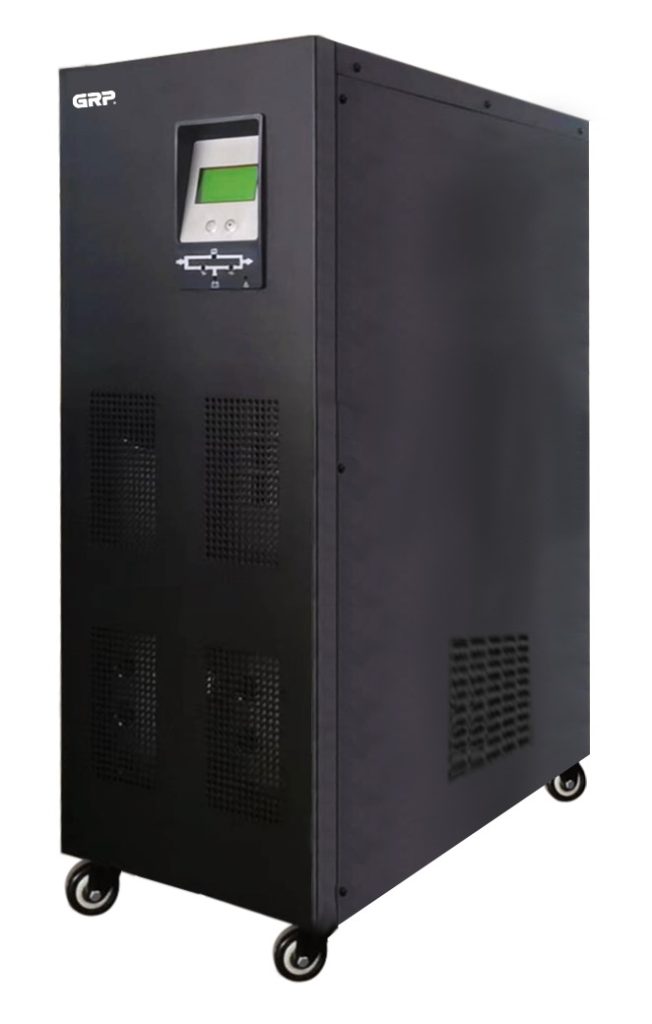

Optimal Series

On-line UPS double conversion with galvanic isolation from 6 to 20 KVA

Description
The Optimal series UPS guarantee total protection for powers ranging from 6kva to 20kva against any
anomaly in the mains electricity network during their operation. With On-Line Double Conversion technology,
as the supply voltage to loads is provided in each case via the inverter stage with galvanic isolation.
Advanced PWM Technology allows a voltage and current adjusted signal to be available at each moment in
time, free of harmonics, noises and interferences. Information on the status of the system is presented locally
by means of LED signalling and a LCD screen with different menus. Information on the unit can be also
managed remotely through its powerful software.

Download : Optimal Series

> On-line UPS double conversion with galvanic isolation
> Microprocessor digital control technology
> Power: 6, 10, 15 and 20KVA
> Galvanic isolation by output transformer
> RFI filler
> Reduced harmonic distortion of output signal
> Wide input voltage range
> Protections against overloads, short-circuits & low battery voltage
> Software included for system monitoring
> Possibility of extended autonomies
> RS232/RS485 connection ports
> LCD display: information about status of UPS
> SNMP card optional /RS232 ethernet converter
