SLC Cube3+PS

Description

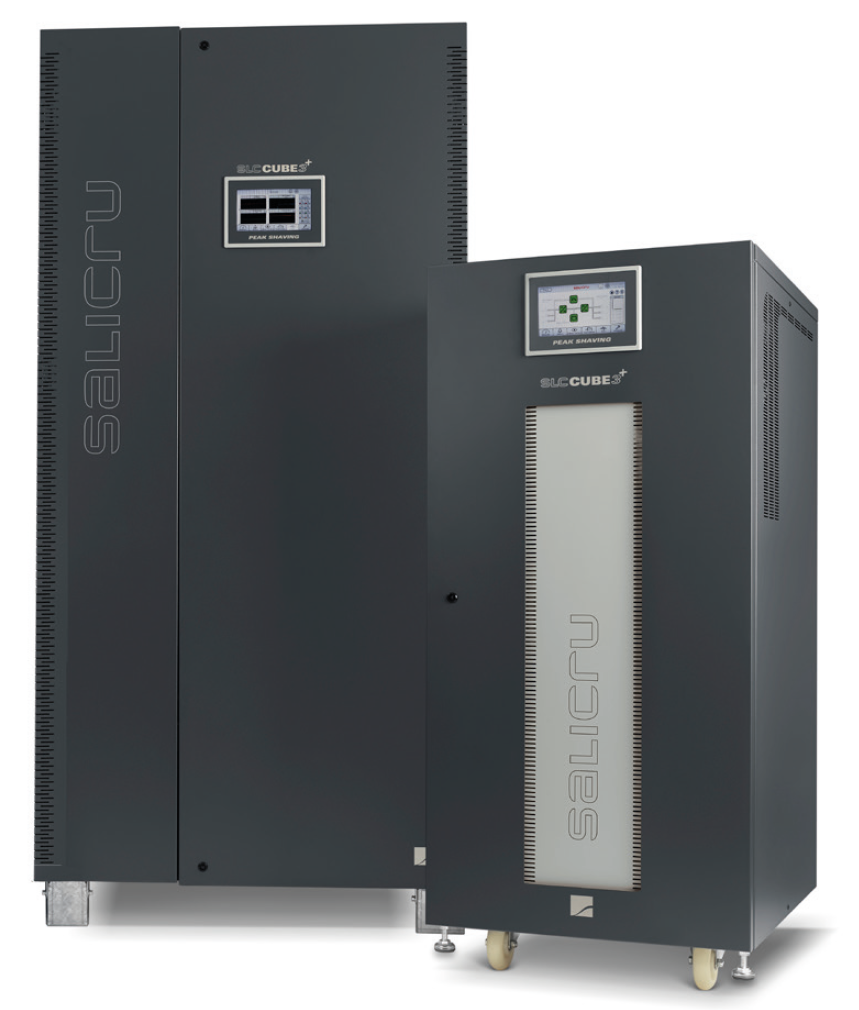

Salicru’s SLC CUBE3+ PS series is a range of high-performance
UPSs with on-line double-conversion (VFI) technology. The main
distinguishing feature of the SLC CUBE3+ PS series of UPSs is
the energy storage system (ESS), which allows the device to reduce
the loads’ consumption peaks (a process known as “peak shaving”),
thereby enabling users to optimise the sizing of the system.
Often, the size of an installation is determined by the highest peaks
of its energy demand. However, the peak shaving function of the SLC
CUBE3+ PS series provides the dual benefit of a lower contracted
energy tariff and lower energy costs, without losing the capacity to
supply the demands of the load. Another benefit of this function is the
optimisation of distribution boards, protections, cabling, etc. And in
addition to peak shaving, the SLC CUBE3+ PS series offers all the
features of a high-performance UPS.
In terms of input supply, of particular interest is the unity input power
factor (PF=1) and extremely low distortion rate (the THDi is even lower
than 1.5%), which help to improve the quality of the electricity grid.
Additionally, it is a UPS with bi-directional topology (four-quadrant
converter), which makes it possible to inject energy upstream
(negative power) when the loads are being supplied by the system
and the grid is available. In terms of output features, of particular
note is the low level of voltage harmonic distortion (THDv can reach
levels of less than 0.5%), adapted to any type of load (resistive,
inductive, capacitive, non-linear, etc.).
Moreover, the high levels of performance enable
