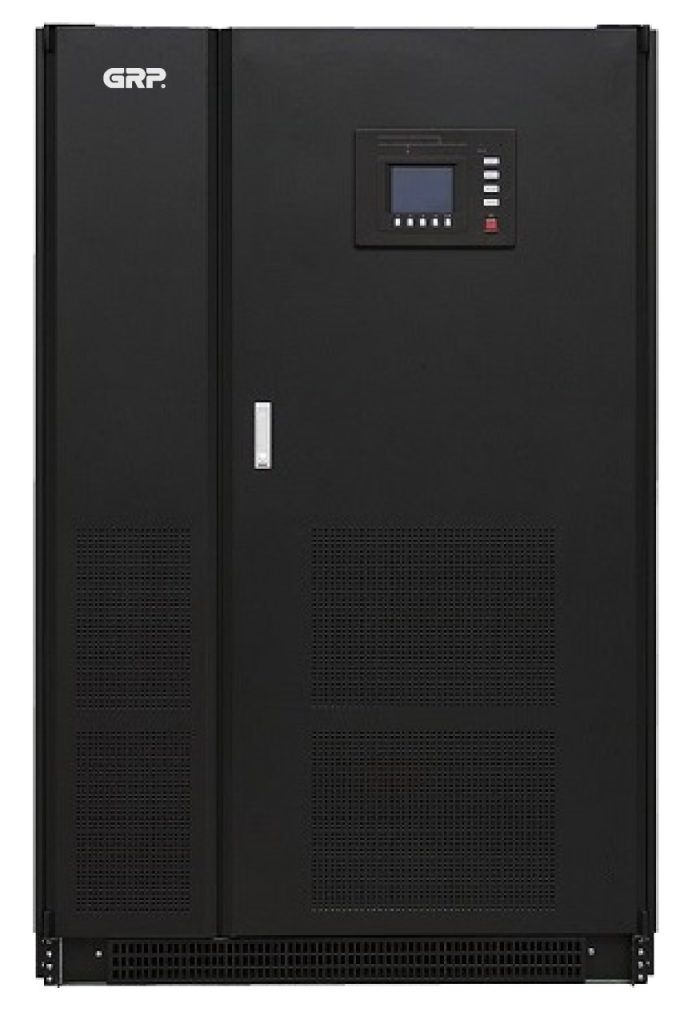

Win Plus Series

On-line UPS double conversion with galvanic isolation form 100 to 800KVA

Description
The Win Plus series UPS are high performance power supply systems with three-phase input and
three-phase output and galvanic isolation by high performance inverter output transformer designed to
supply high quality power on a permanent basis.
Advanced diagnostics and unit information allow users to monitor system parameters and alarms, check the
status of the battery and provide access to the history of events through the system software or multi
language screen.

> Online UPS, Double conversion topology
> Three-phase input/three-phase output
> Multi DSP, CPLD, MCU digital control technology
> Wide input voltage/frequency range, adapt to harsh
utility power
> Super overload capacity and output short-tolerant
ability
> Power: from 100 to 800KVA
> Galvanic insulation by output transformer
> Environment friendly green UPS, with various harmonic
restrain technology
> Advanced intelligent battery management to extend
the battery life
> Redundant control power, increase even higher
system reliability
> Independent cooling system, multi-protection design,
ensures high reliability . even under harsh environments
> High efficiency up to 94%
> Output power factor 0.9
> Extended battery options available
> Frontal connection type: RS232/ RS485
