Win Star Series
Win Star Series

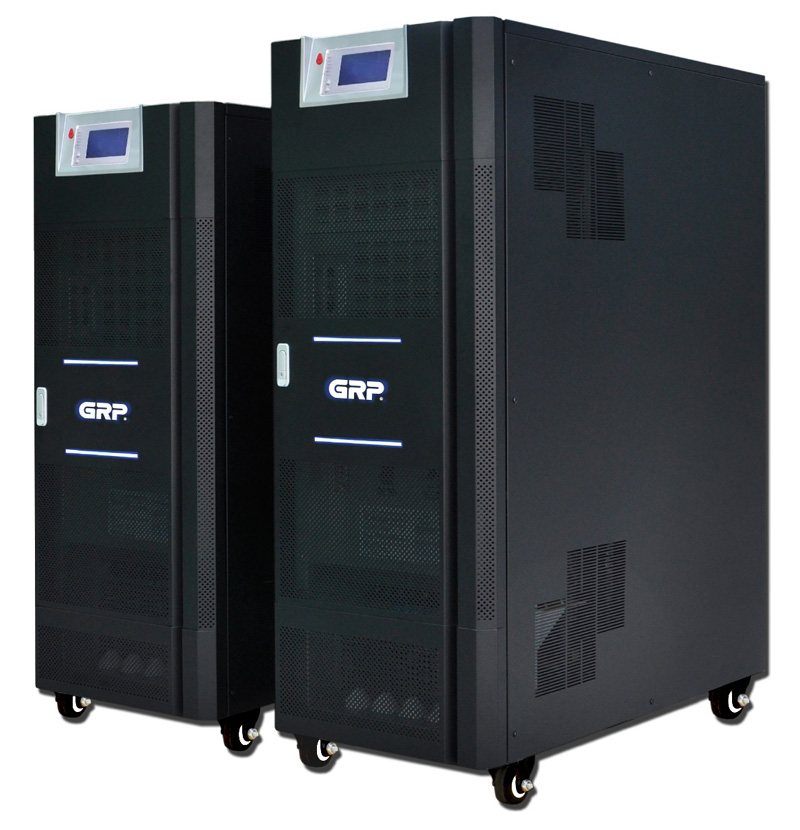

On-line UPS double conversion with galvanic isolation from 6 to 300KVA
Description
The Win Star series UPS are high performance power supply systems with three-phase input and three-phase
output and galvanic isolation by high performance inverter output transformer designed to supply
high-quality power on a permanent basis.
Advanced diagnostics and unit information allow users to monitor system parameters and alarms, check the
status of the battery and provide access to the history of events through the system software or
multi-language screen.
> On-line UPS double conversion
> Three-phase input/three-phase output
> IGBT inverter & DSP control technology
> Power: from 6 to 300 KVA
> Galvanic insulation by output transformer
> Reduced harmonic distortion
> RFI filter
> Acoustic and luminous signaling
> Reduced harmonic distortion of output signal
> High efficiency
> Output power factor 0.9 (PF 1 optional)
> Software included for System Monitoring
> Extended battery options available
> RS232/ SNMP-RJ45
> GPRS module for mobile network remote monitoring (optional)
> Built-in parallel redundancy kit
> Touch screen LCD display
> Manual bypass
> Battery self test
